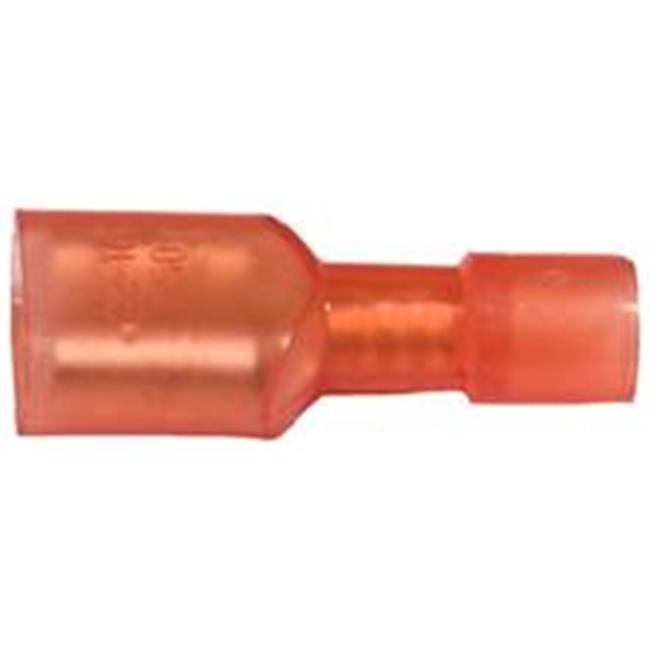

Morris 11968 Nylon Fully Insulated Double Crimp Female Disconnects - 22-16 Wire, .032 x .187 Tab, Pack of 100
(0 review)
Nylon Fully Insulated Double Crimp Female Disconnects - 22-16 Wire,.032x.187 Tab - Our Insulated Double Crimp Female Disconnect combine quality and economy. Features Double Crimp Fully Insulated Female Quick Disconnects feature Nylon Insulation and extended crimp sleeve.; Color Coded insulation for easy identification.; Manufactured from high strength electrolytic copper alloy.; Electro-tin plated for corrosion resistance.; Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief.; Wire range and tab size stamped on the surface for easy interpretation.; Terminal barrel has butted seam.; Serrated barrel provides excellent electrical contact &resistance to pull-out forces.; Double Crimp extended crimp sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance.; 221°F (105°C) 600 Volts Max.; Maximum electric current - 22 AWG - 3 Amp, 20 AWG - 4 Amp, 18 AWG - 7 Amp, 16 AWG - 10 Amp, 14 AWG - 15 Amp, 12 AWG - 20 Amp, 10 AWG - 24 Amp.; Specification Color - Red.; Wire Size - 22-16.; Bag Qty - 100.; Pack of - 100.; Item Weight - 0.22 lbs.; .
