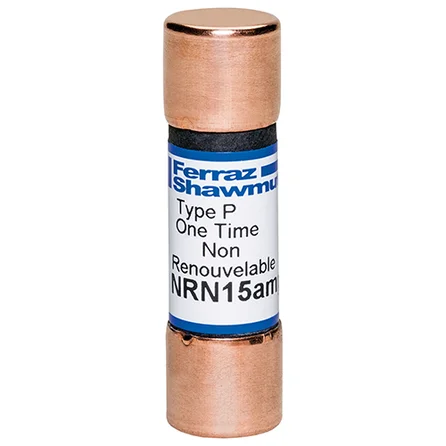

Mersen NRN15 15A 250VAC Class H Non-Time-Delay Fuse (NRN)

The Mersen NRN15 is a 15A Class H non-time-delay fuse from the NRN series, rated 250V AC with 10kA AC interrupting rating. Suited to general-purpose branch-circuit protection where non-time-delay response is acceptable.

Brand

Mersen

Series

NRN

Class

Class H

Type

Non-Time-Delay

Amperage

15A

Voltage rating

250V AC

Interrupting rating

10kA AC

Size (dia x length)

0.56 x 2 in

EAN/UPC

068938999674
