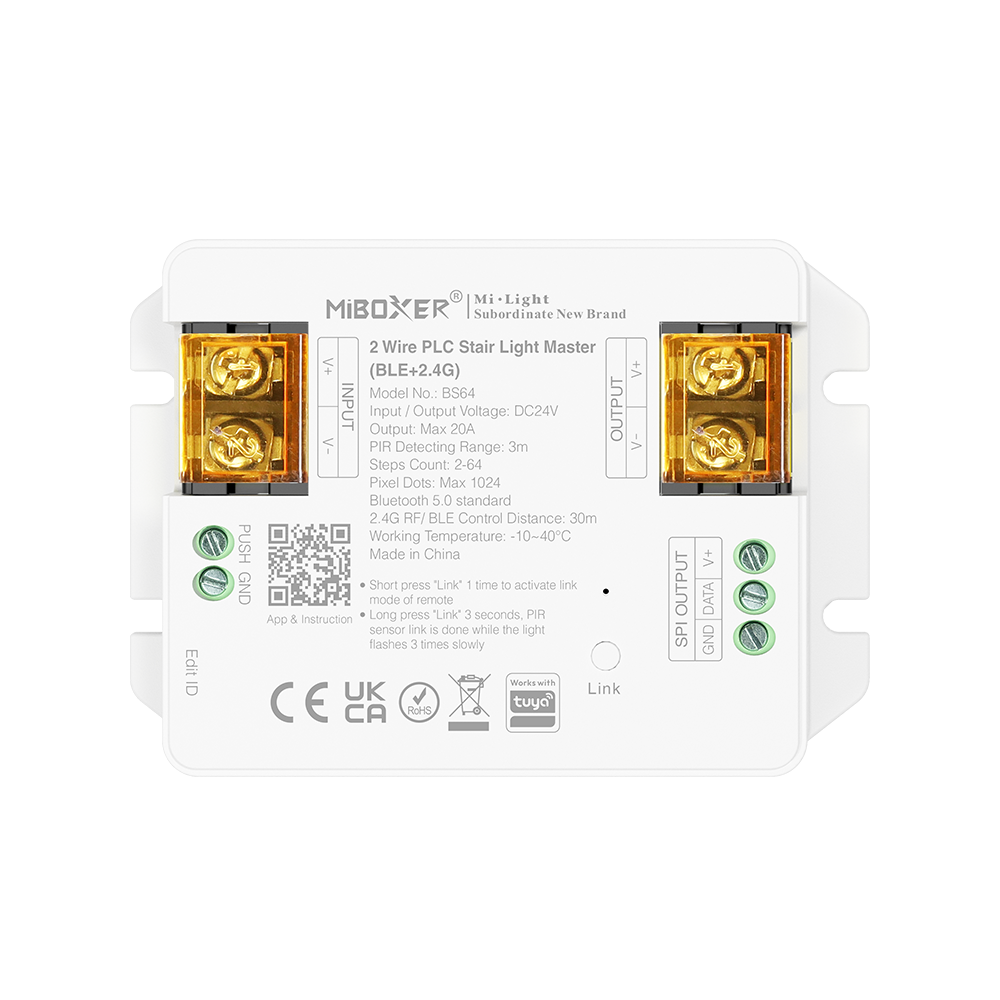

The Miboxer BS64 is a master controller for step-lighting systems, running 2-64 steps over a 2-wire PLC connection with power fed from either end or the middle depending on run length. Rated DC24V, 480W/20A max, with PIR motion sensing to roughly 3m and a 0-24 hour working-time window to cut down on false triggers. Control runs over Bluetooth or 2.4GHz RF through the Tuya or Miboxer app. Requires compatible sub-devices for each step; see wiring options and full specs below.
- Support 0-24 hours working time setting, prevent false triggering
- 4 light sensing modes
- Support SPI strip parameter setting, color calibration, point setting, color and brightness setting
- Support setting the CCT and brightness of staircase lights
- Support short circuit protection, anti-reverse polarity protection
Parameters
| Product Name: | Stair Light |
|---|
| Model No.: | BS64 |
|---|
| Input Voltage: | DC24V |
|---|
| Power: | 480W 20A |
|---|
| Communication Protocol： | Bluetooth / 2.4GHz RF |
|---|
| Control distance: | Bluetooth: 30m 2.4G: 30m |
|---|
| Pixels: | 1024 |
|---|
| PIR sensing distance: | 3m |
|---|
| Steps: | 2-64 |
|---|
| working temperature: | -10~40℃ |
|---|
| Certification: | CE, EMC, RED |
|---|
Support Tuya smart app control
Connection Diagram
Option 1: Using 1.5□ cable when the stair steps are under 24, power can supply from the first step or last step , please check the diagram below.
Option 2: Using 1.5□ cable for the stairs are between 25~36 steps, Power supplies from the middle, please check the diagram below.
Option3: Using 2.5□ cable for the stairs are between 37~64 steps, Power supplies from the middle, please check the diagram below.
