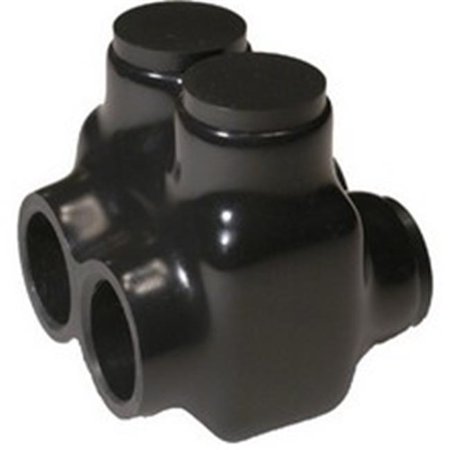

Morris 97117 Insulated 2 Conductor Dual Entry Splice - 2 Set Screws 2.18 in.

Morris 97117 Insulated 2 Conductor Dual Entry Splice - 2 Set Screws 2.18 in.

https://www.arkco.ca/web/image/product.template/91858/image_1920?unique=8dc8b7e
(0 review)

Features Both Wires Enter Same Side of insulated connector Insulated Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires Insulated with rugged high-dielectric rubber/vinyl coating Pre-filled with oxide inhibitor Easy re-entry for changes inspection or troubleshooting Plugs marked with connector max wire size for easy identification Temperature range of –49°F to 194°F (–45° to 90°C) ANSI C119.4 &cULus 486b Listed thru 750MCM Rated for use with 194°F(90°C) Cables 600 Volt One wire per terminal Wire Range - 3/0 - 6 Allen Hex - 0.25 Color - Black Dimension - 2.18 x 2.48 x 2.37 in. - SKU: MSPR7331.

15.88 $ 15.88 CAD 15.88 $

Not Available For Sale

(15.88 $ / Unit)
