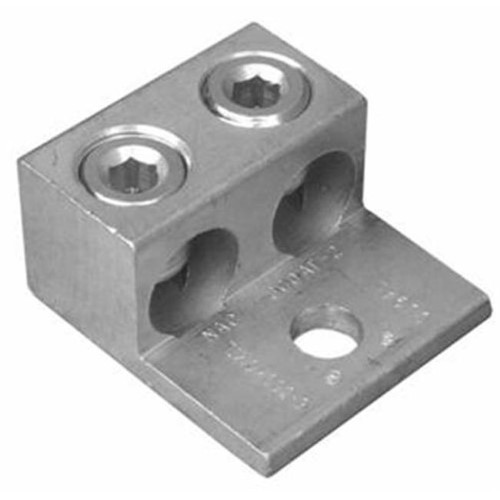

Morris Products 90816 Aluminum Mechanical Lugs Two Conductors - One Hole Mount 250MCM

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 250MCM.Features One hole aluminum conductor is manufactured from high strength 6061-T6 aluminum alloy to insure both maximum strength and conductivity. Dual rated for both copper and aluminum conductors and electro-tin plated to provide low contact resistance and protection against corrosion. Assembly can be made with only a screwdriver or allen wrench and they are re-usable. 90812~90814 have slotted screws. Aluminum conductor is rated 600V 194°F (90°C). UL486B/CSA Listed.Specification AWG - 300. Wire Range - 300MCM - 6SOL. Dimension - 1.94 x 1.72 x 1 in. Bolt - 0.41 in. Box Qty - 8. Weight - 0.19 lbs. - SKU: MSPR548.
