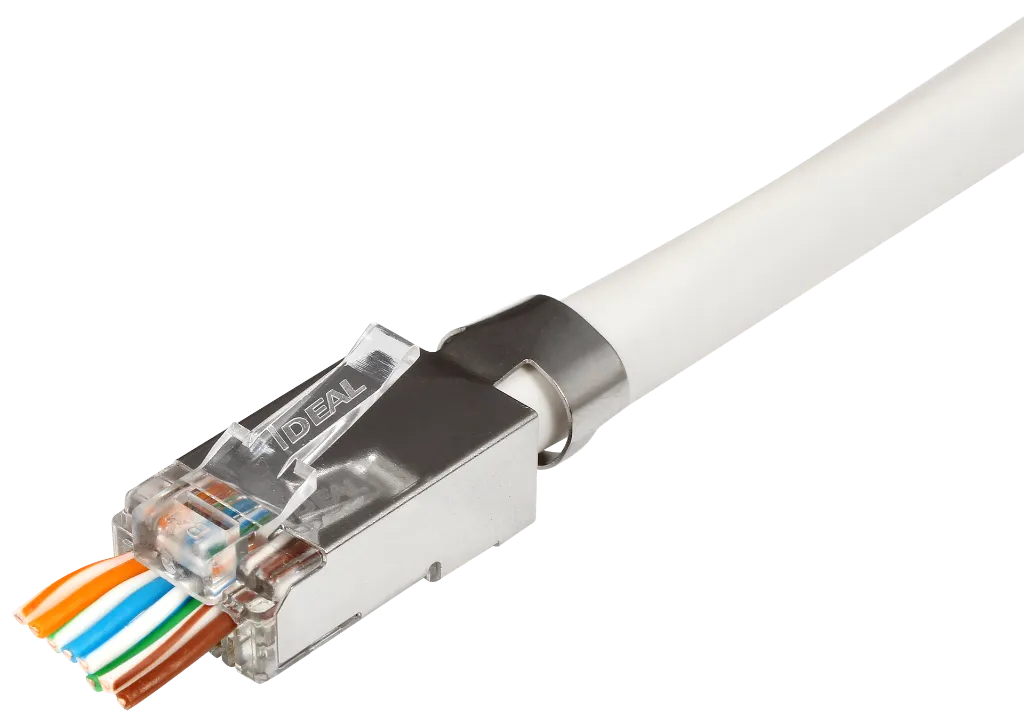

IDEAL® Shielded Feed-Thru RJ45 connectors for large diameter CAT6 and CAT6A simplify cable assembly by enabling the user to quickly verify the conductors are in the correct order before crimping the connector. Compatible with twisted pair cables with an insulated conductor range of 0.040” - 0.048” diameter. When used with the IDEAL® FT-45® tool (30-495), the wire is precision cut flush with the modular plug’s face, thanks to its patented design that prevents accidental contact between adjacent conductors or with the mating jack.
- Staggered conductor and pin design to accommodate large diameter cables
- For shielded twisted pair cables with insulated conductors 0.040” to 0.048 ” in diameter
- Shielded Feed-Thru, single-piece RJ45 connectors enable fast, simple installation and conductor order verification with less wasted materials
- Designed for best performance when used with the IDEAL® FT-45® Crimp Tool (30-495)
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
